TENGU 3220HS / 960KV (6S) Motor-11754

$166.39
1 In Stock
Part
-
+
Add to Wishlist
Ask about this product

Ask a question

XL52M03 4025-1100kv Motor

XL52M03 4025-1100kv Motor

TENGU 3220HS / 900KV (6S)

TENGU 3220HS / 900KV (6S)

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 3220HS comes with a kV rating of 960kV for 6S LiPo batteries and is the perfect choice for your 380 sized Evo, SAB Goblin, Oxy4Max or scale helicopter model.
Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb print, to add the finishing touch to your 380 class heli build.
Each motor comes with mounting screws and 3 pairs of gold bullet connectors.

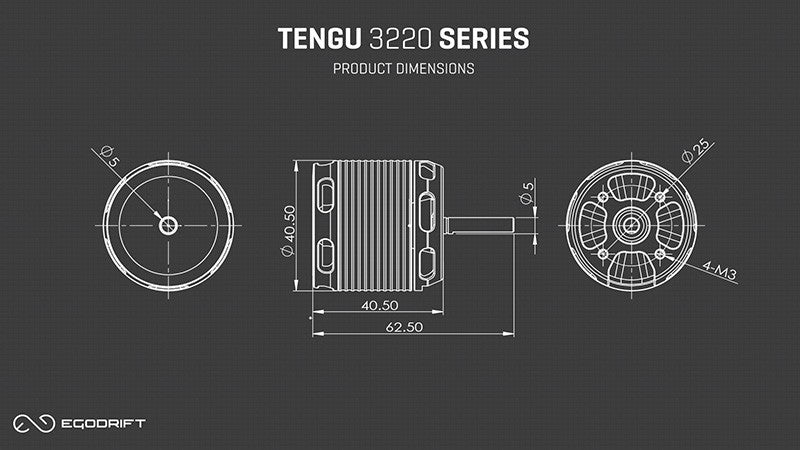

Manufacturer: EGODRIFT Stator size: 3220 Motor configuration: 12N10P Motor weight: 177g Base Colour: Black Wire colour: Copper Motor wire type: High temperature copper wire Motor shaft: Hardened Steel Shaft diameter: 5.0 mm LiPo cells: 6S Motor kV: 960 kV Stator diameter: 32 mm Stator height: 20 mm Stator lamination: 0.15 mm (+) Body Length: 40.5mm (1.59 inch) Diameter: 40.5mm (1.59 inch) Screw hole diameter: 3,0 mm Motor hole pattern: 25mm Idle current: 3.1A Maximum Current: 60A (Peak: 70W / 2 seconds) Maximum Power: 1680W (Peak: 2000W / 2 seconds) Internal resistance: 22.1 mOhm Connection: Wire / Gold plated plugs380
