CAD

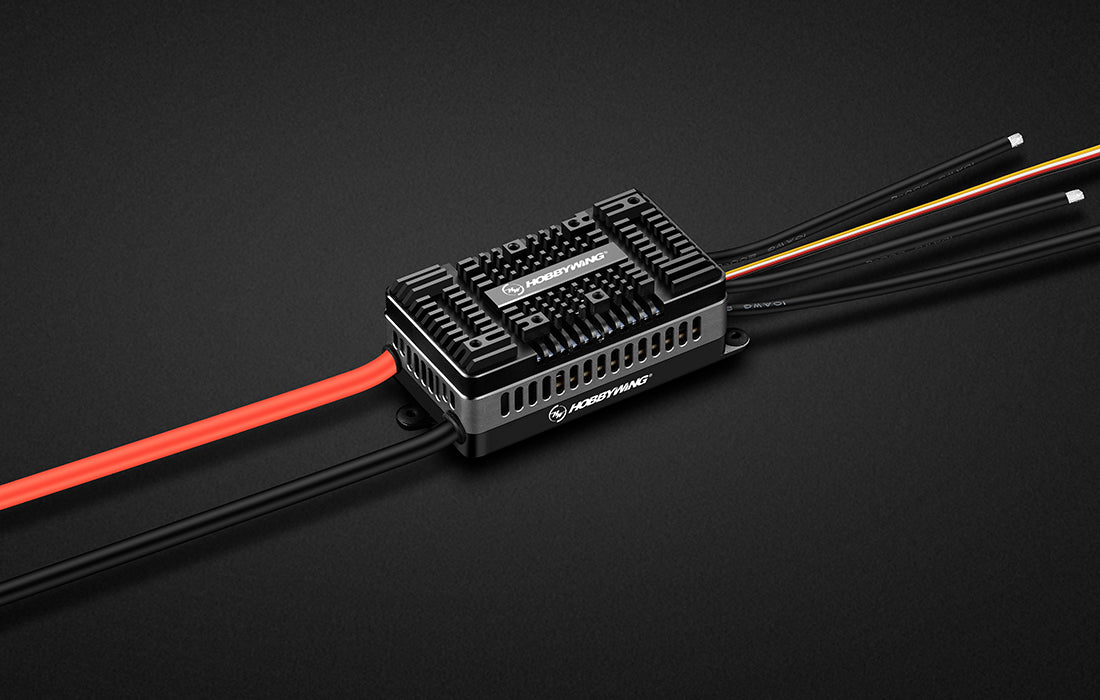

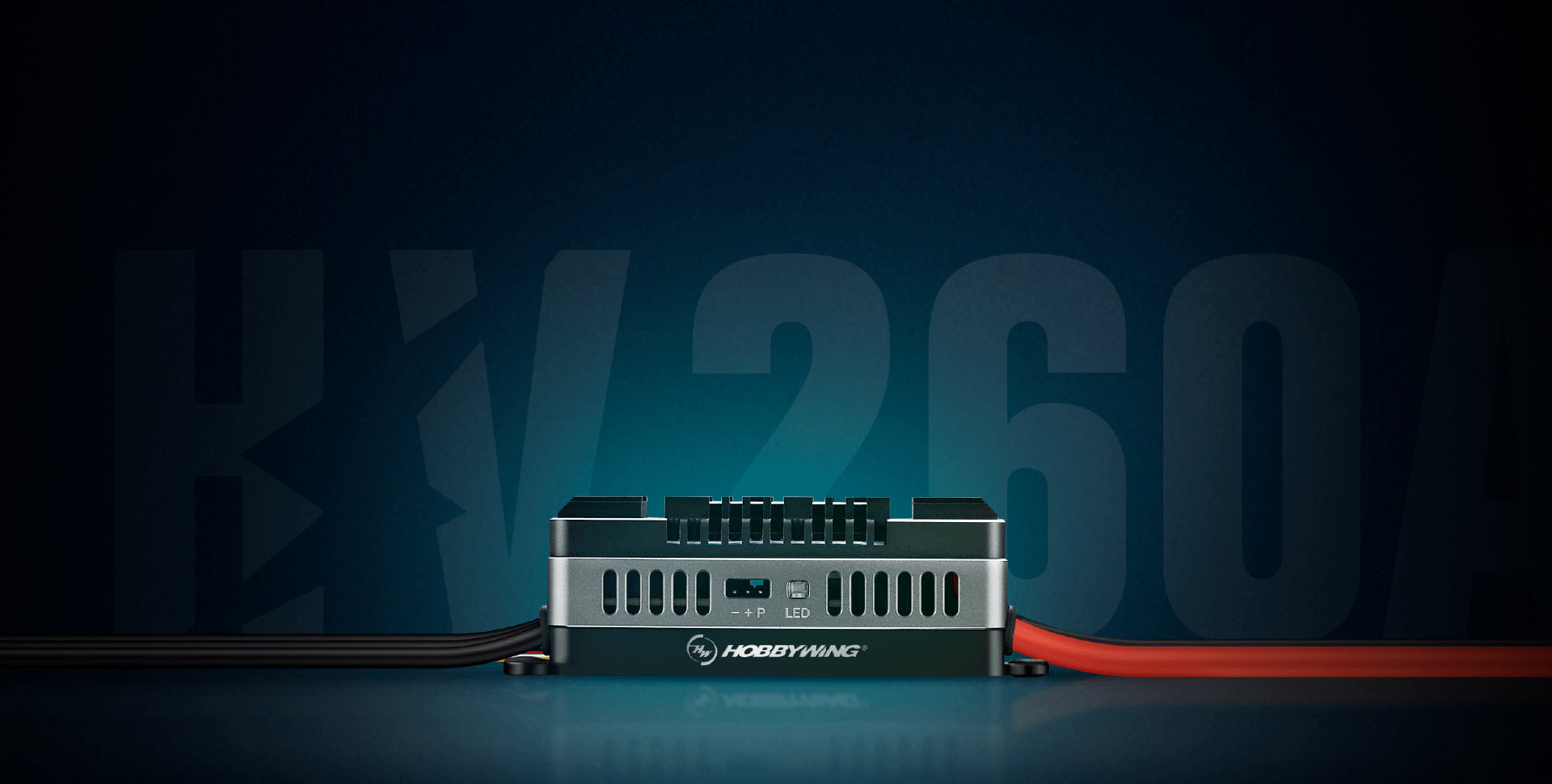

Platinum HV 260A V5
Brushless ESC
Product Number: 30203100
Current: 260A
Input Voltage: 6-14S LiPo
Application scope:700-800 class electric helicopter
(main rotor length 690-880mm),or fixed-wing
Brushless ESC
Product Number: 30203100
Current: 260A
Input Voltage: 6-14S LiPo
Application scope:700-800 class electric helicopter
(main rotor length 690-880mm),or fixed-wing

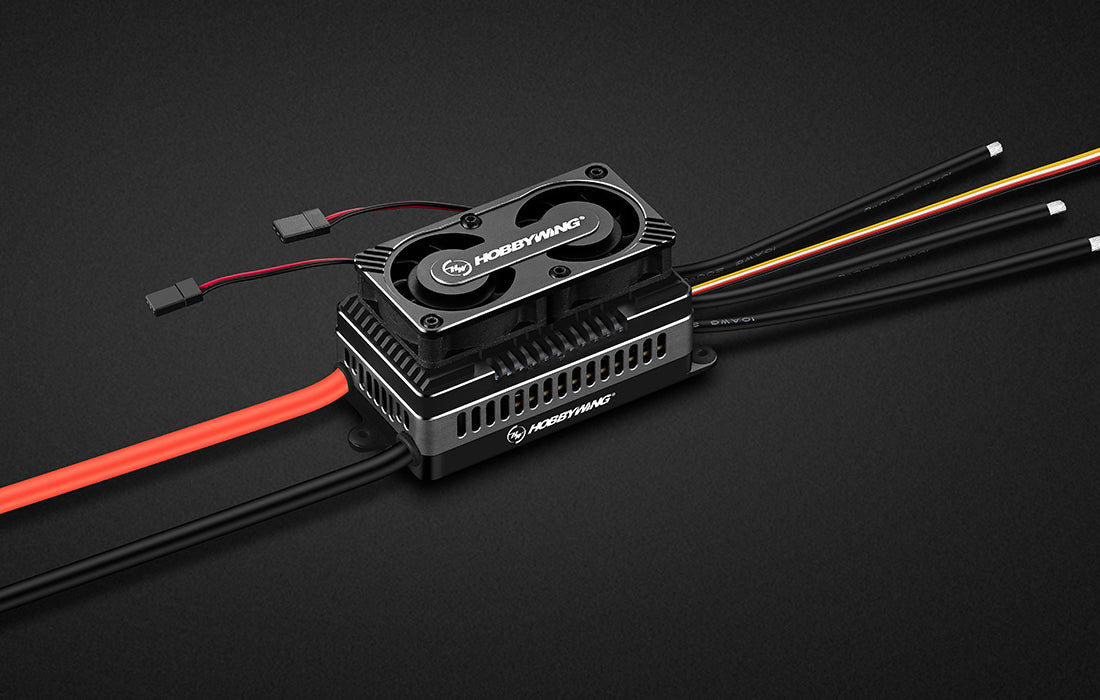

The all new Hobbywing Platinum Pro 260A ESC with 12V BEC output, ready for the high torque 12V servos.
Specifications
|
Continuous/Peak current |
260A / 400A |
|
Input voltage |
6-14S LiPo battery |
|
BEC |
Switch Mode BEC: output voltage 5-12V adjustable (adjusted 0.1V), output current cont. 10A, Peak 30A |
|
Input/Output wires |
1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires |
|
Independent parameter programming interface |
Connect LCD program box or OTA module, or to power the cooling fan |
|
LED light |
Display the statuses and fault alerts |
|
Size/Weight |
89 x 50 x 34mm / 297g (With wires) |
|
Mounting holes |
M3, 39 x 98mm |
|
Application |
700-800 class electric helicopter (main rotor length 700-880mm), or fixed-wing |
