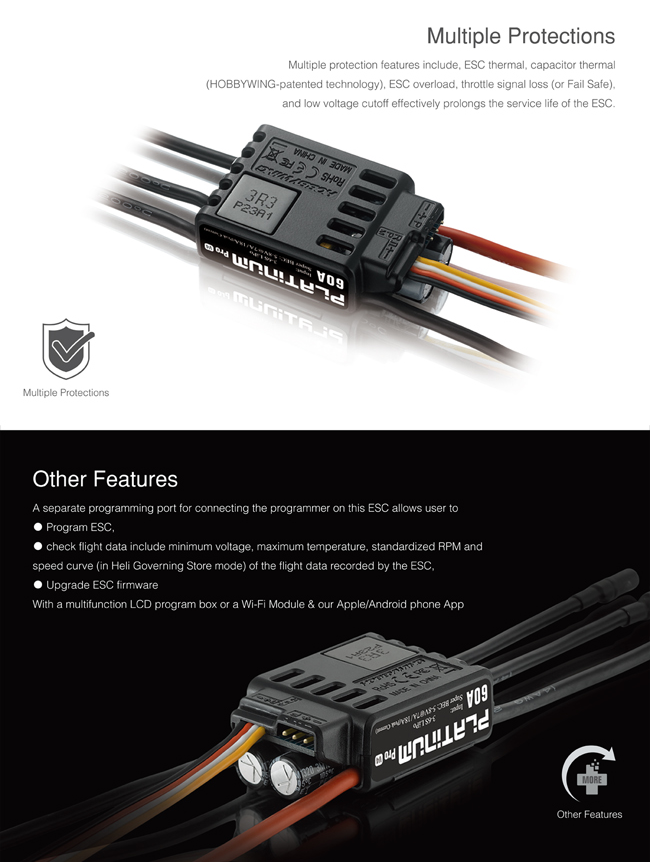

HOBBYWING Platinum 60A V4 ESC

$77.99
1 In Stock
electronic
-
+
Add to Wishlist
Ask about this product

Ask a question

Hobbywing Multifunction LCD Professional Program Box

Hobbywing Multifunction LCD Professional Program Box

Model Platinum 60A ESC V4
Application 450-480 Class Heli (Propeller: 325-360mm)
Input Voltage  3-6S LiPo
Cont./Peak Current (10s) 60A/80A
PWM 18KHz
(Switch-mode) BEC 5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak
Separate Programming Port For connecting LCD Program Box/WIFI Express
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire
Input Wires Red-14AWG-100mm*1/Black-14AWG-100mm*1
output wires Black-14AWG-75mm*3
Output connectors 3.5mm Gold Connectors (Female)
Weight/Size 49g / 48x30x15.5mm
