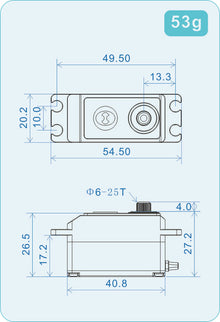

CAD
THETA Razor-TH1 NFC HV Low Profile Brushless Tail Servo
$149.99
Out Of Stock
servo
High voltage, High-Torque, standard size brushless servo.
Ideal tail servo for 550 all the way up to 800 class helicopters
The Servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
· High Voltage
· High Speed
· Excellent Centering
· Compatible with Futaba type horns/arms
· Fully programmable via NFC enabled Android smart phones
· Light Weight
|
Voltage (V) |
Current (A) |
Speed (s/60˚) |
Torque(kg*cm) |
|
5 |
2.6 |
0.062 |
17 |
|
6 |
2.6 |
0.054 |
18 |
|
7.4 |
2.6 |
0.047 |
19 |
|
8.4 |
2.6 |
0.042 |
20 |
|
5 |
5 |
0.058 |
20 |
|
6 |
5 |
0.051 |
24 |
|
7.4 |
5 |
0.044 |
27 |
|
8.4 |
5 |
0.039 |
30 |
