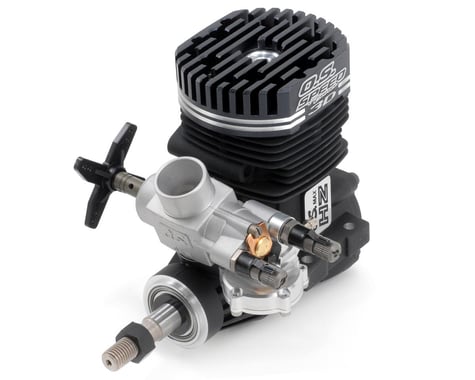

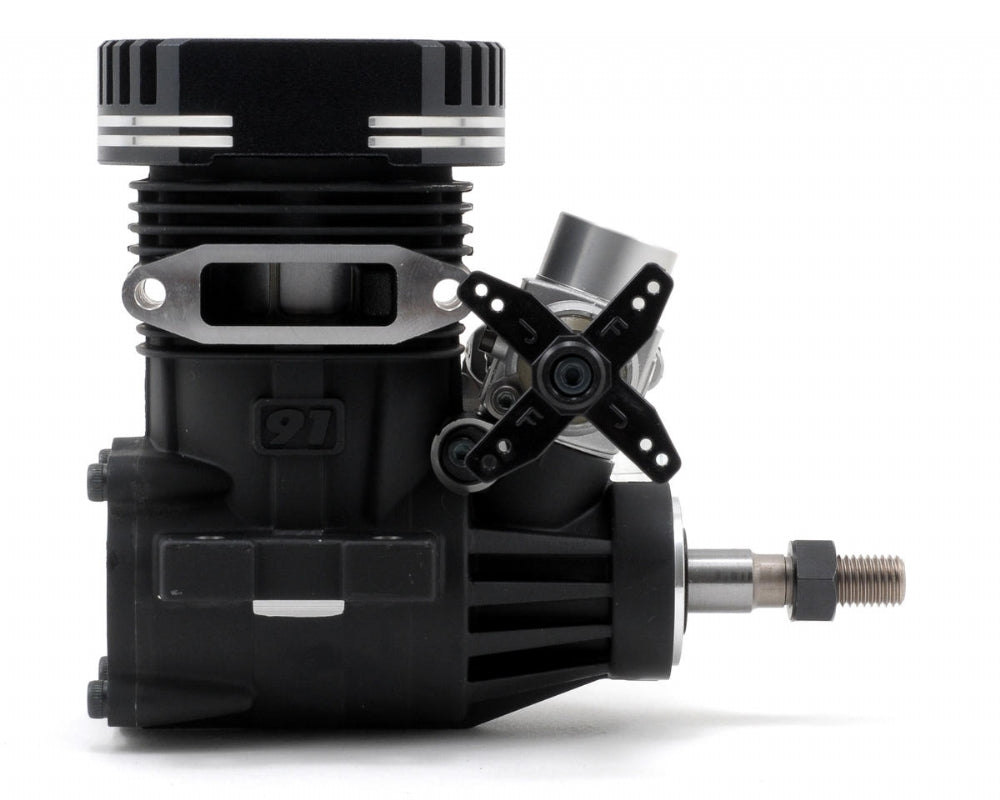

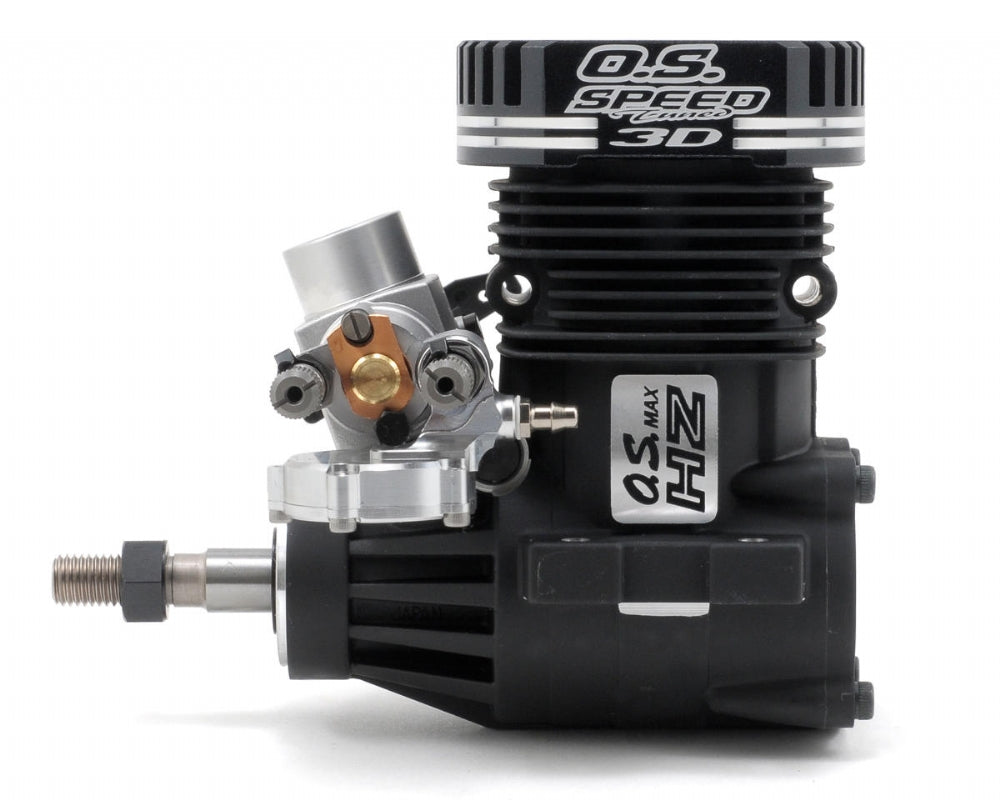

O.S. Speed 91HZ-R 3d Helicopter engine

91HZ-R 3D Speed Features:

• Designed for all-out, aggressive 3D competition.
• Offers incredibly stable mid-range torque for awesome 3D flight
• Carburetor inlet enlarged to 11.2 mm
• Exhaust port timing set at 165°
• Combustion chamber shaped to match the big bore carburetor and advanced exhaust cylinder timing
• Demand Regulator System (DRS) guarantees a steady fuel supply to the carb at any attitude, on a full or empty tank and during the most abrupt throttle changes
• Lightweight, machined cooling head
• Crankshaft counter weight has been modified to reduce vibration at high RPM
• Black anodized crankcase offers better heat dissipation
• Improved back plate shape, to accommodate Futaba's BPS-1 RPM Sensor and increase primary pressure for greater stability
• The cover plate has a cell to accept a sensor designed to install in the cover plate from Futaba GY701 / CGY750 Governor

Specifications:

Displacement: 0.91 cu in (14.9cc)
Bore: 1.09 in (27.7mm)
Stroke: 0.98 in (24.8mm)
Output: 3.6 hp @ 15,500 rpm
Practical RPM: 2,000-16,500
Weight: 21.2 oz (603g)
Requirements: 10%-30% nitro fuel with at least 18% lubricant content

Package Included:

• Engine Pack O.S. Speed Tuned .91HZ-R Helicopter Engine with Pump, 61G Carburetor
• #8 Glow Plug
• Check Valve
• Head Gasket 0.2mm
• OS Speed Decal and English Instruction Manual
