| ●For T-REX 450L 3S, must use with 450L Main Shaft Bearing Block(H45B013XXW) ●Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision. ●High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics. ●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency. ●Supports digital & analog control signal. ●Powerful and precise servo, suitable for T-Rex 250/450 CCPM cyclic use. |

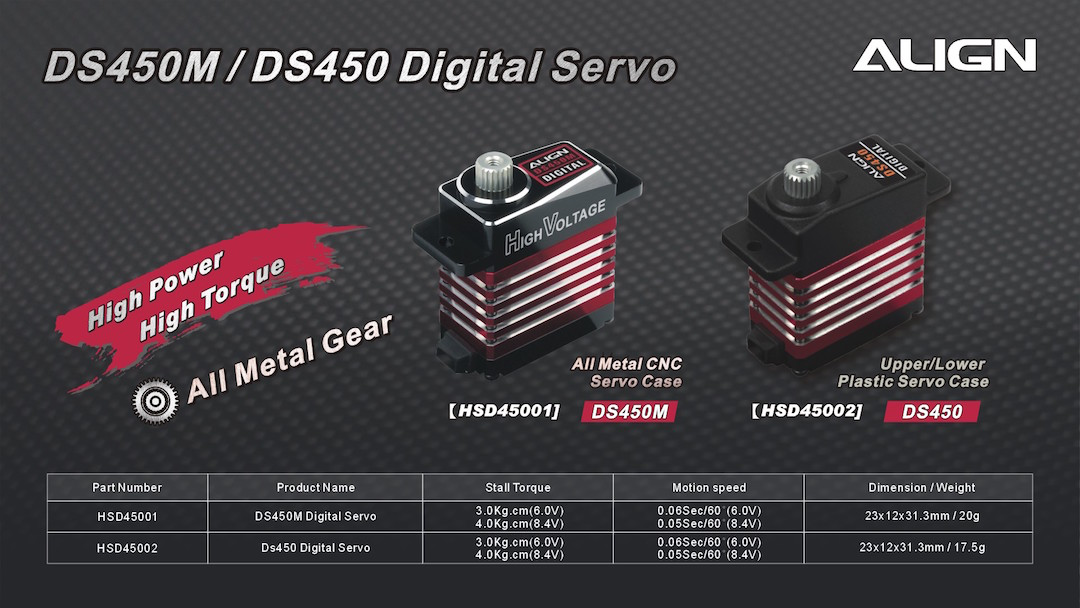

●Stall torque: 3.0kg.cm(6.0V) 4.0kg.cm(8.4V) ●Motion speed: 0.06sec/60°(6.0V) 0.05sec/60°(8.4V) ●Rating voltage: DC 6.0-8.4V ●Temperature range: -20°C ~ +60°C ●Dimension: 23 x 12 x 31.3mm ●Weight: 17.5g |
| Accessories: | |

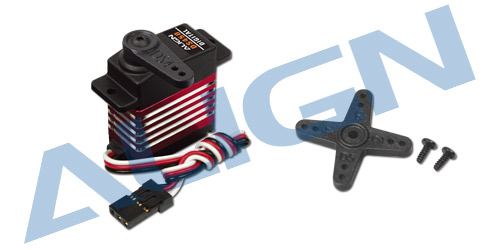

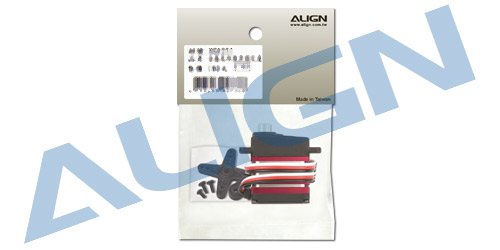

| ●DS450 Digital Servo x 1 ●Socket Button Head Self Tapping Screw x 2 ●Socket Screw x 1 ●Servo Arm x 2 |
