Hobbywing Platinum PRO 80a v5

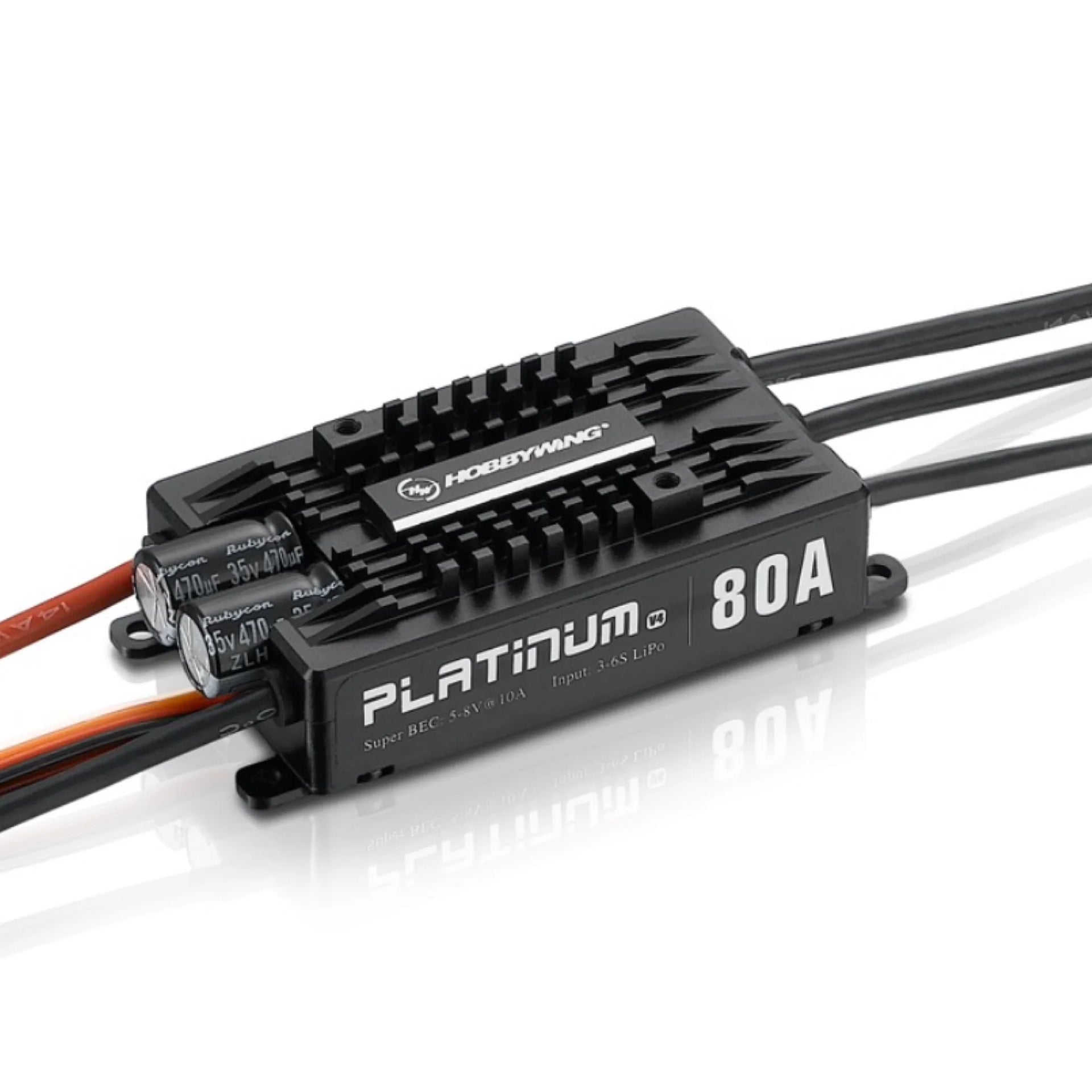

HOBBYWING Platinum 80A V5

High-performance ESC designed for 325–420 class electric helicopters and equivalent fixed-wing aircraft.

🔧 Key Features

Advanced Cooling Design – Dual-sided hollow heat-sink structure with side ventilation allows airflow to pass through the ESC for excellent cooling efficiency.

Built-in Programmable BEC – Switch-mode BEC with adjustable output (5–12 V), 8 A continuous and 20 A peak. Includes anti-reverse protection and supports safe parallel use with an external 2S battery.

32-bit Processor + RPM Precision Algorithm – Ensures consistent, accurate RPM control and smooth throttle response. Adjustable governor sensitivity adapts to different flying styles.

Driving Efficiency Optimization (DEO Technology) – Enhances throttle response, improves efficiency, extends flight time, and lowers ESC operating temperature.

Telemetry & Compatibility – Supports multiple telemetry protocols such as Mikado VBar and Futaba S.BUS2, allowing parameter adjustments and real-time monitoring directly from your transmitter.

Comprehensive Protection System – Includes start-up, over-current, overload, temperature, throttle-signal loss, capacitor-temperature, and input-voltage protections for maximum reliability.

📊 Specifications

Continuous / Peak Current: 80 A / 120 A

Input Voltage: 3 – 8 S LiPo

BEC Output: 5 – 12 V adjustable; 8 A continuous / 20 A peak

Dimensions (w/o fan): 60.5 × 33 × 17.6 mm

Weight (with wires, no fan): approx. 77.5 g

Recommended for: 325 – 420 class electric helicopters or equivalent fixed-wing models

⚙️ Ideal For

Pilots who need a compact yet powerful ESC for 325–420 class builds

Advanced 3D and fixed-wing flyers seeking precision, stability, and efficient cooling

Models where size, weight, and airflow are critical without sacrificing reliability

💡 Why We Recommend It

The Platinum 80A V5 blends advanced cooling, intelligent control, and robust protection in an ultra-compact form factor.
It delivers a perfect balance of power, precision, and reliability, making it an ideal choice for small to mid-size performance helicopters and fixed-wing aircraft.
