CAD

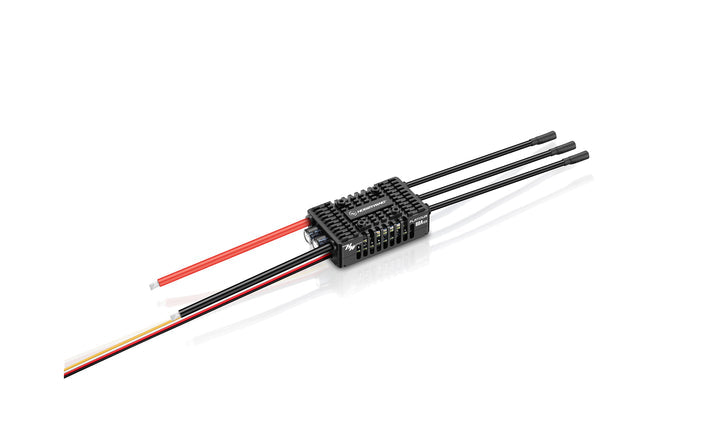

| Model | Platinum PRO 80A ESC V4 |
| SKU | 30203200 |
| Application | 450- 500 Class Helicopter |
| Input Voltage | 3-6S Lipo |
| Cont./Peak Current (10s) | 80A/100A |
| PWM | 18KHz |
| (Switch-mode) BEC | Switch Mode:5-8V,10A |
| Separate Programming Port | For connecting LCD Program Box/WIFI Express |
| Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) | White Throttle Signal Wire/Red & Black and Red&Brown BEC Output Wires/Yellow RPM Signal Transmission Wire |
| Input Wires | Red-12AWG-150mm*1/Black-12AWG-150mm*1 |
| Output Wires | Black-12AWG-100mm*3 |
| Output connector | 4.0mm Gold Connectors (Female) |
| Size | 84.3x38.2x20.4mm |
| Weight | 97g / 3.42oz |
