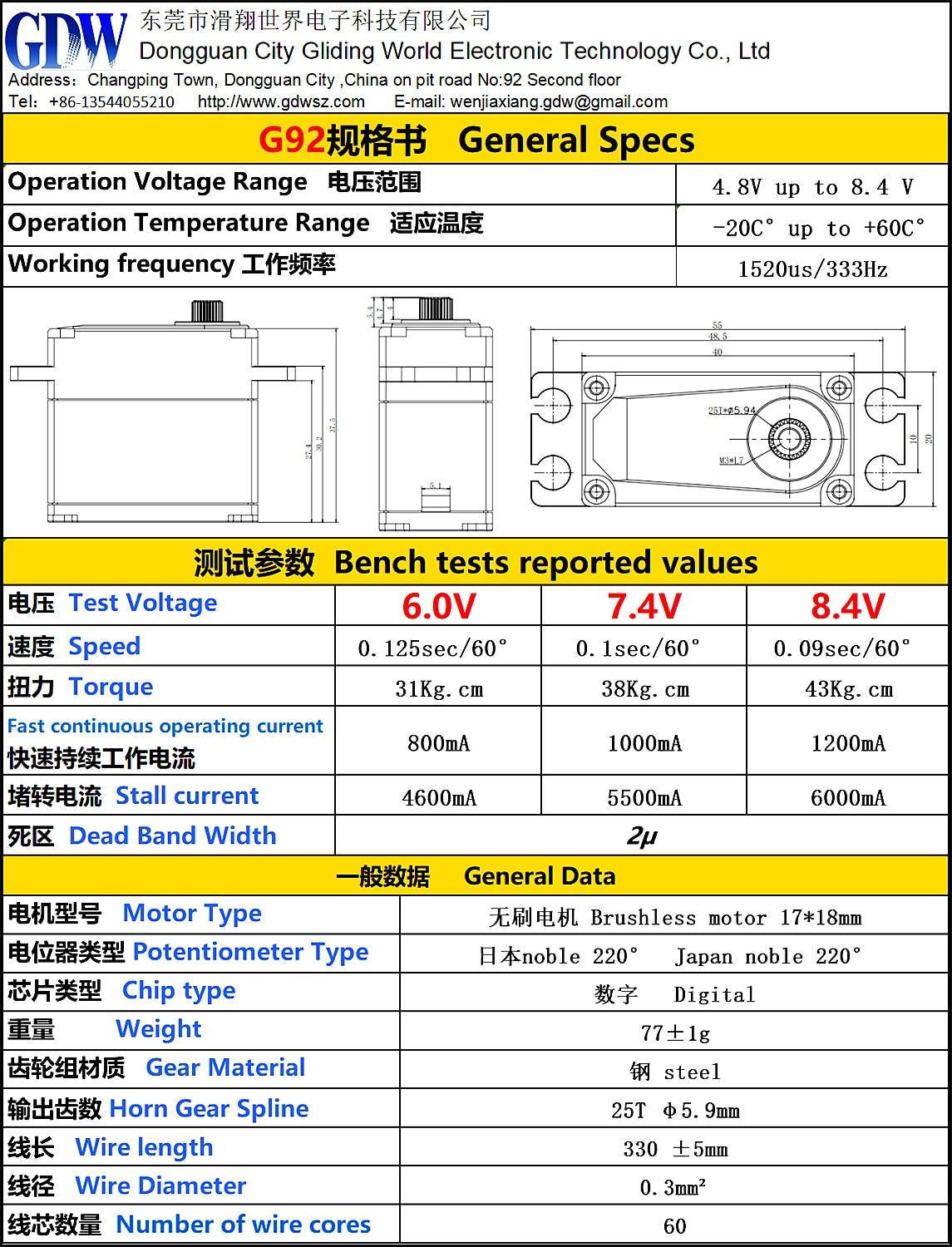

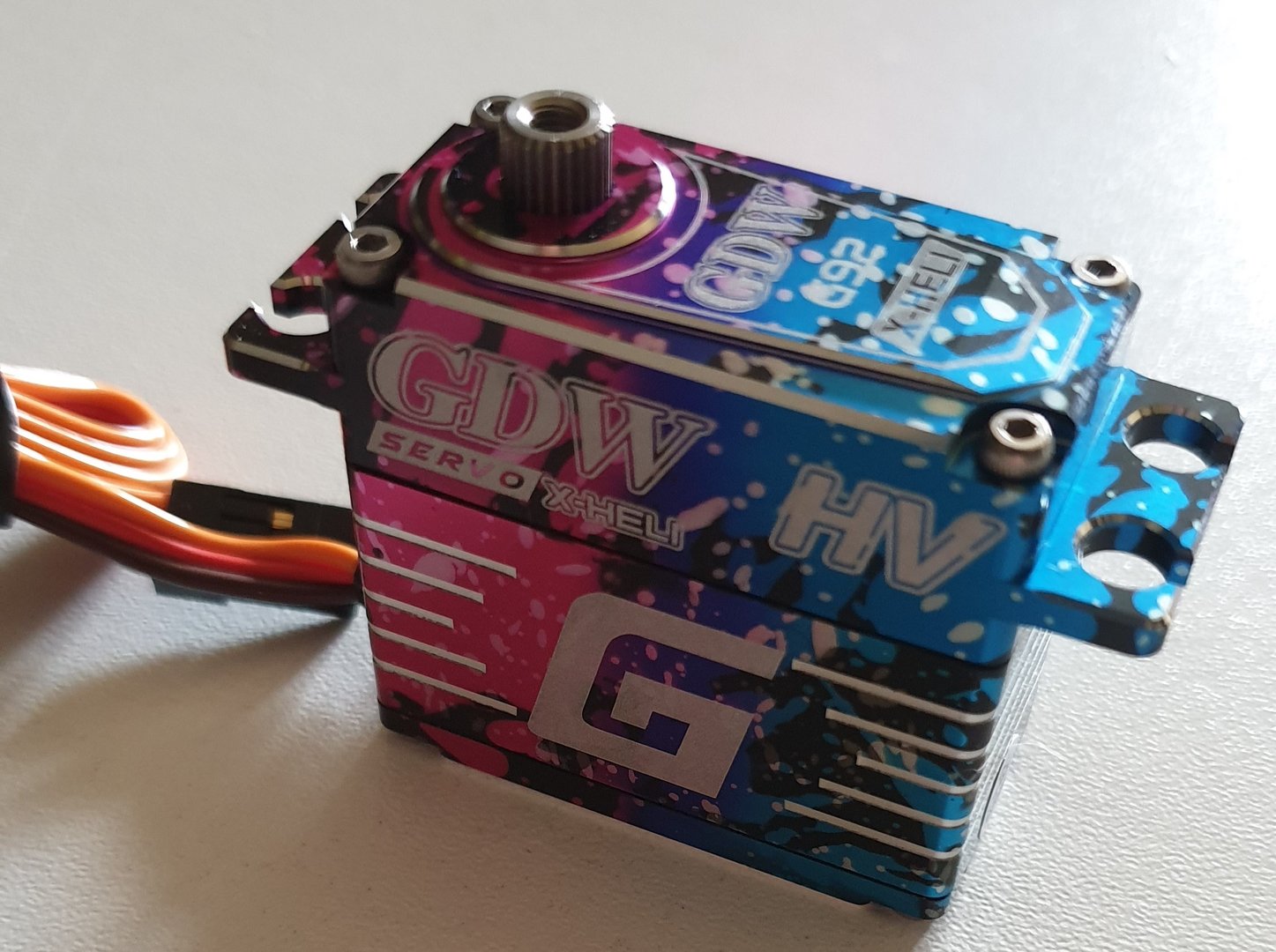

- GDW G92 HV Brushless Standard swashplate Servo for helicopters
- Standard Size Servo
- Operating voltage range: 4.8V – 8.4V
- Working frequency: 1520µs / 333Hz
- Dimensions: 40mm (55mm) x 20mm x 37.5mm
- Weight: 77g ± 1g
- Bench test values:
31kg.cm/0.125sec/60°@6.0V
38kg.cm/0.1sec/60°@7.4V
43kg.cm/0.09sec/60°@8.4V - Dead band: 2µs
- Motor type: Brushless motor 17mm x 18mm
- Gear material: steel
- Horn gear spline: 25T ⌀ 5.9mm
- Wire length: 330mm ± 5mm
- Wire diameter: 0.3mm2
- Number of wire cores: 60
- Feature:
Race-class helicopter steering gear
Helicopter high-speed digital steering gear
Stainless steel output teeth, double bearings
Tough and wear-resistant
Quick response, extraordinary response
28KG 0.055S
Standard swashplate, for helicopters
Competition level configuration, pl
