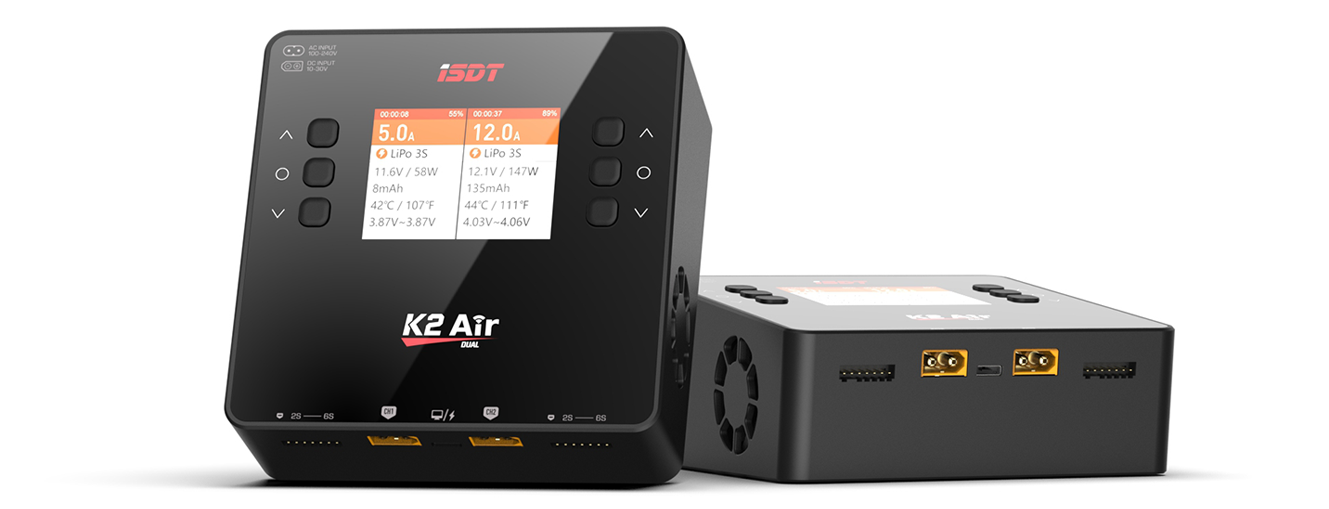

ISDT K2 Air AC 200W DC 500Wx2 20A Dual Channel Balance Lipo Charger Discharger
High Power Synchronous Dual Channel, with Smart Charging.
Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 500W for single port.
Choose ISDT, Powered by Innovation.
AC/DC dual mode
AC /DC dual input meet different use requirements.
Output : AC /200W, DC /500Wx2.
2.8″ IPS LCD Display
Low power consumption, 178° visible angle
Display clear and distinct
Even in varies hard environment or angles
As well as in strong sunshine.
Two-way USB interface:
By connecting the charger microUSB port to the PC,
all series can acquire latest firmware upgrading.
It can also output 5V/2A power through the USB Type-C interface,
For charging mobile devices.
Wireless Operation,
start with “ISDLink”
K2 Air adds the wireless connection function.
With ‘ISDLink’ APP, you can preset charging tasks,
monitor the charging process at any time.
Also, one click to OTA upgrade.
Wirelessly operate, awesomely simple.
Specifications
Input voltage: | AC 100~240V / DC 10~30V |
Output voltage: | DC 1~30V |
Max. input current: | DC 35A |
Charging current: | 0.2~20A x2 |
Discharging current: | 0.2~1.5A x2 |
Balance current: | 1.5A/Cell Max |
Max. discharging power: | 15W x2 |
Max. charging power: | AC 200W / DC 500W x2 |
Abnormal voltage alarm: | Support |
Incorrect cell count setting alarm: | Support |
Supported battery types and cell count: | LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S |
Parallel charging power and current: | 800W/35A |
Parallel discharge power and current: | 30W/3A |
Working temperature: | 0~40℃ |
Storage temperature: | -20℃~60℃ |
Dimension: | 135x135x64mm |
Weight: | About 700g |

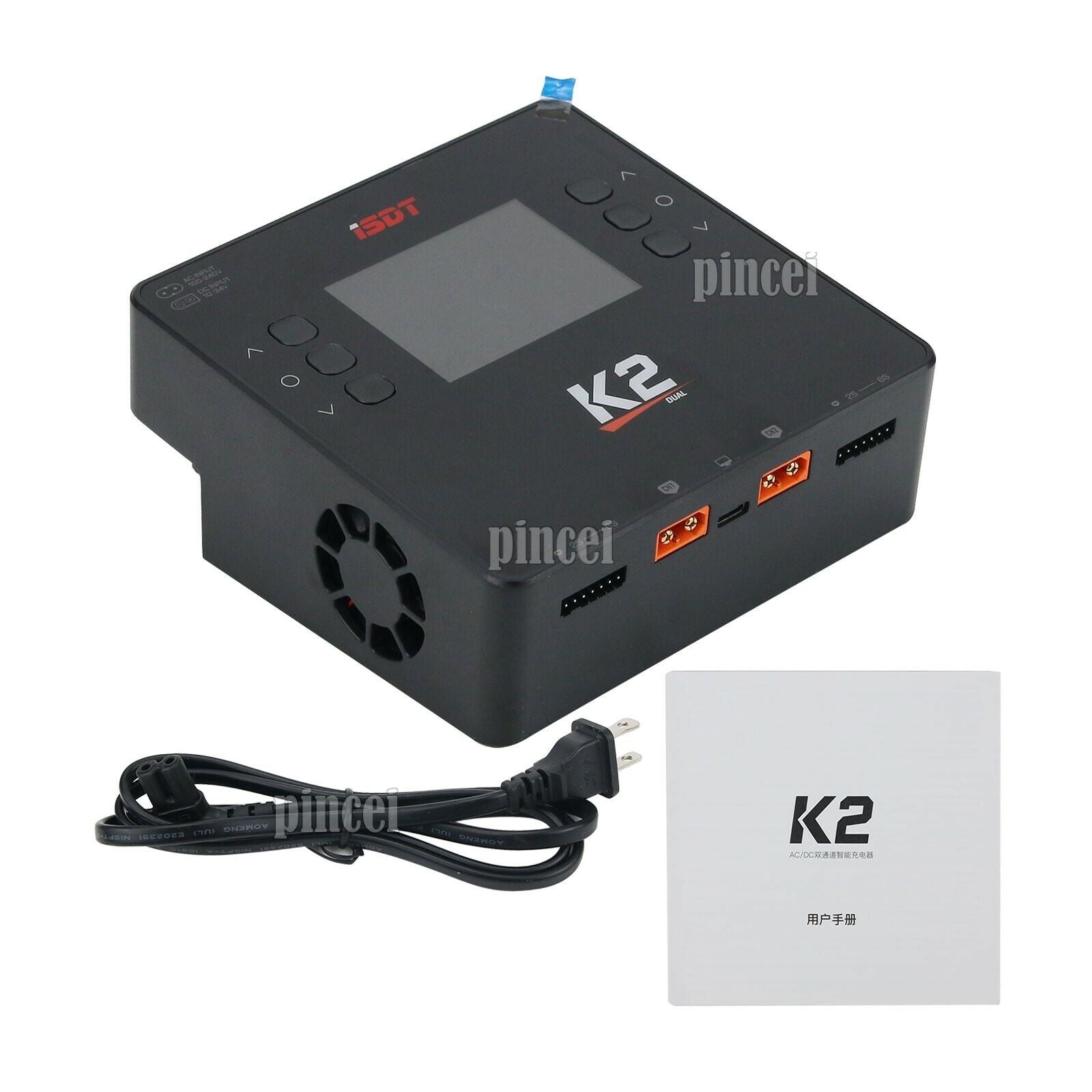

Packaging included: | 1X ISDT K2 Air Charger |
